Documentation
Documentation regarding various apects could be found at https://docs.google.com/document/d/1arxpuFZeH0-wSDiPeqGITXCv4QyfDtWb/edit?usp=sharing&ouid=117346421118620353373&rtpof=true&sd=true.

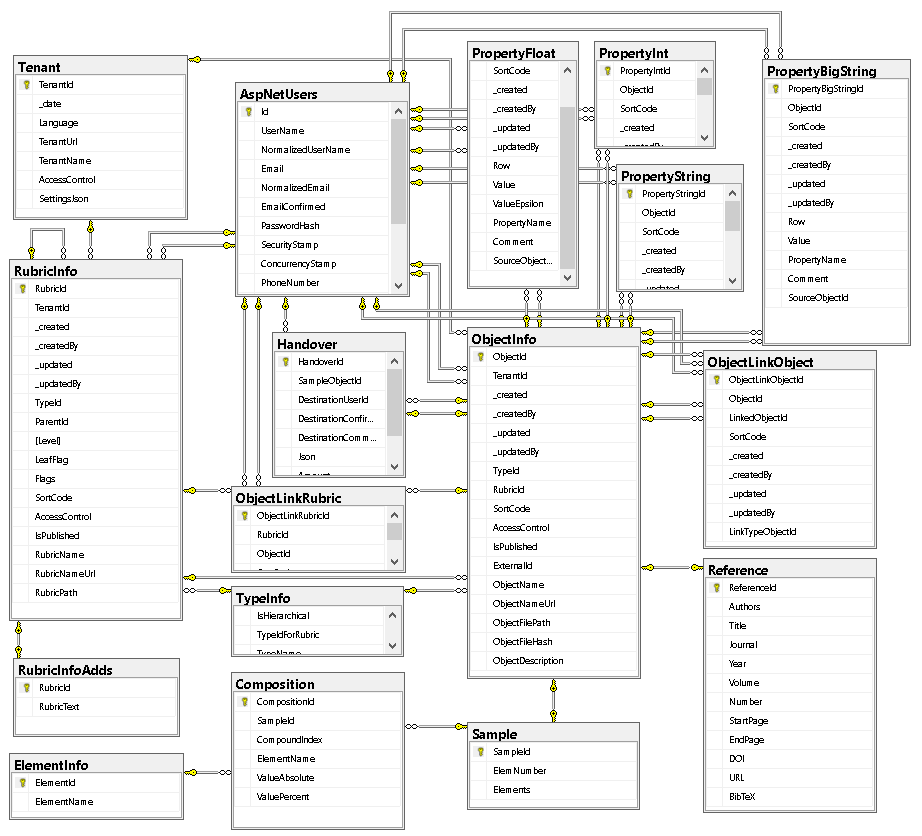

Database structure description
Generated automatically from database according to attributes description.
All standard ASP.Net Core Identity tables (AspNet*) are not shown here for a simplicity reason.Tables
dbo.AspNetRoleClaims
Contains claims for roles from AspNetRoles
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| Id | int | Row Id (identity, primary key) | Yes | |
| RoleId | int | Role Id (from AspNetRoles.Id) | No | AspNetRoles.Id |
| ClaimType | nvarchar(max) | Name of a claim | No | |
| ClaimValue | nvarchar(max) | Value of a claim | No |
dbo.AspNetRoles
Contains roles available in the application
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| Id | int | RoleId | Yes | |
| Name | nvarchar(512) | Role Name | No | |
| NormalizedName | nvarchar(512) | Name in uppercase | No | |
| ConcurrencyStamp | nvarchar(max) | Concurrency Stamp | No |
dbo.AspNetUserClaims
Contains claims for users from AspNetUsers
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| Id | int | Row Id (identity, primary key) | Yes | |
| UserId | int | User Id (from AspNetUsers.Id) | No | AspNetUsers.Id |
| ClaimType | nvarchar(max) | Claim Name | No | |
| ClaimValue | nvarchar(max) | Claim value | No |
dbo.AspNetUserLogins
Contains external OAuth authentification providers for users
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| LoginProvider | nvarchar(256) | OAuth Login Provider | Yes | |
| ProviderKey | nvarchar(256) | Provider Key (provider-specific key for the user) | Yes | |
| ProviderDisplayName | nvarchar(max) | OAuth Login Provider Name (to display) | No | |
| UserId | int | User Id from AspNetUsers.Id | No | AspNetUsers.Id |
dbo.AspNetUserRoles
Contains user-group relation
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| UserId | int | User Id from AspNetUsers.Id | Yes | AspNetUsers.Id |
| RoleId | int | Role Id from AspNetRoles.Id | Yes | AspNetRoles.Id |
dbo.AspNetUsers
Contains registered users of the application (users are shared by all tenants in the same database)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| Id | int | UserId | Yes | |
| UserName | nvarchar(512) | Login in the authorisation form | No | |
| NormalizedUserName | nvarchar(512) | UserName in uppercase | No | |
| nvarchar(512) | User E-mail | No | ||
| NormalizedEmail | nvarchar(512) | E-mail in uppercase | No | |
| EmailConfirmed | bit | whether the E-mail has been confirmed (using the link from the e-mail) | No | |
| PasswordHash | nvarchar(max) | User Password hash | No | |
| SecurityStamp | nvarchar(max) | Security Stamp | No | |
| ConcurrencyStamp | nvarchar(max) | Concurrency Stamp | No | |
| PhoneNumber | nvarchar(max) | Phone Number | No | |
| PhoneNumberConfirmed | bit | whether the PhoneNumber has been confirmed | No | |
| TwoFactorEnabled | bit | Two-factor authorisation | No | |
| LockoutEnd | datetimeoffset | Once LockoutEnd has a future date then the user is considered locked out whether LockoutEnabled is true or false | No | |
| LockoutEnabled | bit | enable a user lockout for a specific period of time | No | |
| AccessFailedCount | int | how many times the user has entered an incorrect password | No |
dbo.AspNetUserTokens
Contains user tokens for a specific OAuth provider
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| UserId | int | UserId from AspNetUsers.Id | Yes | AspNetUsers.Id |
| LoginProvider | nvarchar(256) | Login Provider | Yes | |
| Name | nvarchar(256) | Name of a token | Yes | |
| Value | nvarchar(max) | Token Value | No |
dbo.Composition
Contains the quantitative composition for a sample (from Sample), identified by SampleId
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| CompositionId | int | CompositionId - uniqie row identifier, primary key | Yes | |
| SampleId | int | Reference to a Sample (identifier from Sample table) | No | Sample.SampleId |
| CompoundIndex | int | To sort chemical elements in a formula (list) in ascending order, by default 0 | No | |
| ElementName | varchar(2) | Element name as specified in the Periodic Table (ElementInfo table) | No | ElementInfo.ElementName |
| ValueAbsolute | float | Absolute value in chemical formula (element contents) | No | |
| ValuePercent | float | Percent value in chemical formula (element contents), calculated automatically if ValueAbsolute is set | No |
dbo.ElementInfo
Contains chemical elements from the Periodic Table
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| ElementId | int | Element Identifier (atomic number), primary key | Yes | |
| ElementName | varchar(2) | Element name as specified in the Periodic Table | No |
dbo.Handover
Contains handovers for tracking physical objects/samples, but potentially could be extended for any type/logic (extension for ObjectInfo)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| HandoverId | int | HandoverId==ObjectId (in this table information from ObjectInfo is extended) | Yes | ObjectInfo.ObjectId |
| SampleObjectId | int | Reference to a Sample (from Sample table == ObjectId from ObjectInfo) that should be physically transferred to other person | No | ObjectInfo.ObjectId |
| DestinationUserId | int | Target user (from AspNetUser) who will receive the sample | No | AspNetUsers.Id |
| DestinationConfirmed | datetime | Time stamp as a receivement confirmation (NULL - not confirmed) | No | |
| DestinationComments | varchar(128) | Comments from a target/destination user | No | |
| Json | varchar(max) | JSON containing additional data regarding the handover | No | |
| Amount | float | Amount of a sample (in case of powder) / NULL in case of items (materials library wafer) | No | |
| MeasurementUnit | varchar(32) | Measurement unit for amount (if specified) / NULL in case of items (materials library wafer) | No |
dbo.ObjectInfo
Contains objects of all types
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| ObjectId | int | Unique Object Identifier (assigned automatically, identity), primary key | Yes | |
| TenantId | int | Tenant Identifier (assigned automatically based on URL address) from Tenant table | No | Tenant.TenantId |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the object (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the object (from AspNetUsers table) | No | AspNetUsers.Id |
| TypeId | int | Object Type (identifier from TypeInfo table) | No | TypeInfo.TypeId |
| RubricId | int | Identifier of the RubricId from RubricInfo (specifies the location of the object within a project tree) | No | RubricInfo.RubricId |
| SortCode | int | To sort objects in a list (project) in ascending order, by default 0 | No | |
| AccessControl | int | Object Availability: 0 - Public (visible for anonymous users), 10 - Partner=Restricted=External=Affiliated - available to external partners ("Partner" claim must be set to "1", so that user sees Partner items and not Protected ones) (less restrictive than "Protected"); for affiliated partner users (who should have access to a limited data), new access level since September 2025, 20 - Protected (visible for users with at least the "User" group), 30 - ProtectedNDA (visible for users with at least the "User" group and the "NDA" claim set to "1"; more restrictive than "Protected"), 40 - Private (visible for user-creator and administrators). | No | |
| IsPublished | bit | Reserved (not used so far): 1 - published; 0 - draft (do not display in lists). | No | |
| ExternalId | int | Auxiliary Id from external information system to support coherence and consistency (if needed) | No | |
| ObjectName | varchar(512) | Unique (within type) object name, must be specified | No | |
| ObjectNameUrl | varchar(256) | Unique (within tenant) object URL (used in web application to refer to object page) | No | |
| ObjectFilePath | varchar(256) | relative path (in future could be an absolute link to an external cloud storage) to the object document stored on the disk (reference to the data file uploaded by the user) | No | |
| ObjectFileHash | varchar(128) | SHA-256 hash (hex) for document in ObjectFilePath (must be unique within a tenant) | No | |
| ObjectDescription | varchar(1024) | Optional Object description (showed in project list) | No |
dbo.ObjectLinkObject
Contains directed edges (ObjectId -> LinkedObjectId) to form the oriented object graph. The semantic of the edge could be specified in LinkTypeObjectId which characterises the edge.
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| ObjectLinkObjectId | int | Unique ObjectLinkObject Identifier (assigned automatically, identity), primary key; to link objects to other objects, thus creating a graph | Yes | |
| ObjectId | int | ObjectId (reference to a parent object) from ObjectInfo | No | ObjectInfo.ObjectId |
| LinkedObjectId | int | Linked ObjectId (reference to a child object) from ObjectInfo | No | ObjectInfo.ObjectId |
| SortCode | int | To sort objects in a list of references in ascending order, by default 0 | No | |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the object (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the object (from AspNetUsers table) | No | AspNetUsers.Id |
| LinkTypeObjectId | int | Object to characterise a link (thus providing semantics for an oriented graph edge) | No | ObjectInfo.ObjectId |
dbo.ObjectLinkRubric
Contains additional rubrics (in addition to ObjectInfo.RubricId) where the object should be visible, allowing multiple locations for an object in the project tree.
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| ObjectLinkRubricId | int | Unique ObjectLinkRubric Identifier (assigned automatically, identity), primary key; to link objects to other objects, thus creating a graph | Yes | |
| RubricId | int | Reference to a rubric (from RubricInfo) that should show a specified object (thus object is shown in several rubrics) | No | RubricInfo.RubricId |
| ObjectId | int | Reference to an object (from ObjectsInfo) that should be displayed in the rubric | No | ObjectInfo.ObjectId |
| SortCode | int | The sort code for an object link; to sort objects in a list (rubric) of objects/references in ascending order, by default 0 | No | |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the object (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the object (from AspNetUsers table) | No | AspNetUsers.Id |
dbo.PropertyBigString
Contains large strings (BLOBs) for object description (aka extended properties)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| PropertyBigStringId | int | Unique Big String Property Identifier (assigned automatically, identity), primary key | Yes | |
| ObjectId | int | Reference to an object, that owns the property (ObjectId from ObjectInfo) | No | ObjectInfo.ObjectId |
| SortCode | int | To sort properties in a list of properties in ascending order, by default 0 | No | |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the property (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the property (from AspNetUsers table) | No | AspNetUsers.Id |
| Row | int | Row number (1, 2, 3...) for a table properties (NULL - no table, scalar property). In templates -1 - table property; NULL - scalar | No | |
| Value | varchar(max) | Property value (-1 for templates as a fake value) | No | |
| PropertyName | varchar(256) | Name of the property. Attention: triplet (ObjectId, PropertyName, Row) must be unique, ensured by unique index. | No | |
| Comment | varchar(256) | Comment for a property (could be a measurement unit in a template) | No | |
| SourceObjectId | int | ObjectId of a source object, that created this property (or data from which was saved to this property) | No | ObjectInfo.ObjectId |
dbo.PropertyFloat
Contains real numbers for object description (aka extended properties)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| PropertyFloatId | int | Unique Float Property Identifier (assigned automatically, identity), primary key | Yes | |
| ObjectId | int | Reference to an object, that owns the property (ObjectId from ObjectInfo) | No | ObjectInfo.ObjectId |
| SortCode | int | To sort properties in a list of properties in ascending order, by default 0 | No | |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the property (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the property (from AspNetUsers table) | No | AspNetUsers.Id |
| Row | int | Row number (1, 2, 3...) for a table properties (NULL - no table, scalar property). In templates -1 - table property; NULL - scalar | No | |
| Value | float | Property value (-1 for templates as a fake value) | No | |
| ValueEpsilon | float | Measurement accuracy | No | |
| PropertyName | varchar(256) | Name of the property. Attention: triplet (ObjectId, PropertyName, Row) must be unique, ensured by unique index. | No | |
| Comment | varchar(256) | Comment for a property (could be a measurement unit in a template) | No | |
| SourceObjectId | int | ObjectId of a source object, that created this property (or data from which was saved to this property) | No | ObjectInfo.ObjectId |
dbo.PropertyInt
Contains integer numbers for object description (aka extended properties)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| PropertyIntId | int | Unique Integer Property Identifier (assigned automatically, identity), primary key | Yes | |
| ObjectId | int | Reference to an object, that owns the property (ObjectId from ObjectInfo) | No | ObjectInfo.ObjectId |
| SortCode | int | To sort properties in a list of properties in ascending order, by default 0 | No | |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the property (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the property (from AspNetUsers table) | No | AspNetUsers.Id |
| Row | int | Row number (1, 2, 3...) for a table properties (NULL - no table, scalar property). In templates -1 - table property; NULL - scalar | No | |
| Value | bigint | Property value (-1 for templates as a fake value) | No | |
| PropertyName | varchar(256) | Name of the property. Attention: triplet (ObjectId, PropertyName, Row) must be unique, ensured by unique index. | No | |
| Comment | varchar(256) | Comment for a property (could be a measurement unit in a template) | No | |
| SourceObjectId | int | ObjectId of a source object, that created this property (or data from which was saved to this property) | No | ObjectInfo.ObjectId |
dbo.PropertyString
Contains strings (up to 4096 characters) for object description (aka extended properties)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| PropertyStringId | int | Unique String Property Identifier (assigned automatically, identity), primary key | Yes | |
| ObjectId | int | Reference to an object, that owns the property (ObjectId from ObjectInfo) | No | ObjectInfo.ObjectId |
| SortCode | int | To sort properties in a list of properties in ascending order, by default 0 | No | |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the property (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the property (from AspNetUsers table) | No | AspNetUsers.Id |
| Row | int | Row number (1, 2, 3...) for a table properties (NULL - no table, scalar property). In templates -1 - table property; NULL - scalar | No | |
| Value | varchar(4096) | Property value (-1 for templates as a fake value) | No | |
| PropertyName | varchar(256) | Name of the property. Attention: triplet (ObjectId, PropertyName, Row) must be unique, ensured by unique index. | No | |
| Comment | varchar(256) | Comment for a property (could be a measurement unit in a template) | No | |
| SourceObjectId | int | ObjectId of a source object, that created this property (or data from which was saved to this property) | No | ObjectInfo.ObjectId |
dbo.Reference
Contains description for literature references (extension for ObjectInfo)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| ReferenceId | int | ReferenceId==ObjectId (in this table information from ObjectInfo is extended) | Yes | ObjectInfo.ObjectId |
| Authors | varchar(512) | All authors in a comma-separated list | No | |
| Title | varchar(1024) | Title of manuscript | No | |
| Journal | varchar(256) | Journal Title | No | |
| Year | int | publication year | No | |
| Volume | varchar(32) | volume descriptor | No | |
| Number | varchar(32) | issue number | No | |
| StartPage | varchar(32) | Start page of a publication | No | |
| EndPage | varchar(32) | End page of a publication | No | |
| DOI | varchar(256) | DOI (Digital Object Identifier) | No | |
| URL | varchar(256) | Publication URL (Uniform Resource Locator) | No | |
| BibTeX | varchar(4096) | Description in a BibTeX format | No |
dbo.RubricInfo
Contains tree structures for the application (project tree, organisational structure)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| RubricId | int | Unique Rubric Identifier, primary key | Yes | |
| TenantId | int | Tenant Identifier (assigned automatically based on URL address) from Tenant table | No | Tenant.TenantId |
| _created | datetime | Date and time of the record creation | No | |
| _createdBy | int | User who created the object (from AspNetUsers table) | No | AspNetUsers.Id |
| _updated | datetime | Date and time of the record creation/modification | No | |
| _updatedBy | int | User who created/modified the object (from AspNetUsers table) | No | AspNetUsers.Id |
| TypeId | int | Rubric Type (identifier from TypeInfo table) | No | TypeInfo.TypeId |
| ParentId | int | RubricId of a parent rubric (or NULL in case of top-level rubric) | No | RubricInfo.RubricId |
| Level | int | Level of rubric nesting (0 - root rubric; 1 - next level, etc...) | No | |
| LeafFlag | int | Set of flags. From the least significant bit: 0x1 - presence of objects (in ObjectInfo): 0 - no objects; 1 - there are objects; 0x2 - presence of objects (in ObjectLinkRubric): 0 - no objects; 1 - links exist; 0x4 - Is Rubric End / Leaf (child free): 0 - no children (leaf); 1 - there are children (not leaf). Calculated automatically on the server (see dbo.ProcRubric_NormaliseTree) | No | |
| Flags | int | Reserved (not used so far) | No | |
| SortCode | int | To sort rubrics within a parent (project) in ascending order, by default 0 | No | |
| AccessControl | int | Rubric Availability: 0 - Public (visible for anonymous users), 1 - Protected (visible for users with at least the "User" group), 2 - ProtectedNDA (visible for users with at least the "User" group and assigned "NDA" claim), 3 - Private (visible for user-creator and administrators). | No | |
| IsPublished | bit | Reserved (not used so far): 1 - published; 0 - draft (do not display in lists). | No | |
| RubricName | varchar(256) | Name of the Rubric, must be specified | No | |
| RubricNameUrl | varchar(256) | Unique (within tenant) rubric URL (used in web application to refer to rubric page) | No | |
| RubricPath | varchar(256) | '}'-separated rubric path from the root (calculated automatically on the server, see dbo.ProcRubric_NormaliseTree) | No |
dbo.RubricInfoAdds
Contains text description for a rubric from RubricInfo
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| RubricId | int | Rubric Identifier from RubricInfo table | Yes | RubricInfo.RubricId |
| RubricText | varchar(max) | Rubric Description (HTML) to shown in the app | No |
dbo.Sample
Contains sample information (essentially a chemical system, i.e. qualitative description of composition (extension for ObjectInfo)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| SampleId | int | SampleId==ObjectId (in this table information from ObjectInfo is extended) | Yes | ObjectInfo.ObjectId |
| ElemNumber | int | Number of chemical elements (number of elements in the chemical system) | No | |
| Elements | varchar(256) | List of chemical elements (in ascending order by name) separated by "-" (to search using "-El-" expression). | No |
dbo.Tenant
Contains list of tenants in the database (tenants share common users and types)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| TenantId | int | Unique tenant identifier (TenantId must be unique within an application instance that supports multiple databases, i.e. TenantId is unique across all instance databases) | Yes | |
| _date | datetime | Date and time of the record creation/modification | No | |
| Language | varchar(32) | User Interface Language | No | |
| TenantUrl | varchar(32) | Tenant URL (unique across instances) | No | |
| TenantName | varchar(128) | Short name of a tenant (displayed in the top left corner of the UI) | No | |
| AccessControl | int | Default access control value (see ObjectsInfo.AccessControl description) in UI for new objects | No | |
| SettingsJson | varchar(max) | JSON with settings for the tenant (see documentation) | No |
dbo.TypeInfo
Contains types of objects that could be present in the application, regarding their configuration (allowed file type extensions, validation and data extraction schema, etc.)
Columns description
| Name | Type | Description | Is Primary Key | Foreign Key (table.column) |
|---|---|---|---|---|
| TypeId | int | Unique Type Identifier, primary key | Yes | |
| IsHierarchical | bit | 1 - Hierarchical types (such as project tree) are stored in the RubricInfo table; 0 - List types (such as chemical objects, measurement results) are stored in the ObjectInfo table. | No | |
| TypeIdForRubric | int | TypeId for the hierarchical classifier where the object should be displayed (in most cases - id of Rubric Type) | No | |
| TypeName | varchar(64) | Unique Type Name | No | |
| TableName | varchar(64) | Table Name to store data (one of: RubricInfo; ObjectInfo, Sample, Composition, Reference, Handover) | No | |
| UrlPrefix | varchar(64) | URL prefix for type (reserved, not used so far) | No | |
| TypeComment | varchar(256) | Comment for type, describing it's purpose | No | |
| ValidationSchema | varchar(256) | Schema to validate type objects data (type:ClassName or https://WebServiceURL) | No | |
| DataSchema | varchar(256) | Schema to extract data from objects' data documents (type:ClassName or https://WebServiceURL) | No | |
| SettingsJson | varchar(8000) | JSON with settings for the type (see documentation) | No | |
| FileRequired | bit | 1 - impossible to create object without a file in ObjectInfo.ObjectFilePath; 0 - optional file | No | |
| _date | datetime | Date and time of the record creation/modification | No |
Views
dbo.vComposition
View that combines Composition with Sample and ObjectInfo tables to get all quantitative compositions
dbo.vHandover
View that combines Handover with ObjectInfo table to get complete handovers data
dbo.vObjectInfo
View that combines ObjectInfo with types and users tables to get extended object data
dbo.vObjectLinkObject
View that combines ObjectLinkObject with ObjectInfo table two times (for parent - ObjectId; and for Child - LinkedObjectId) to get information about interconnected objects (except edge type characterisation in LinkTypeObjectId)
dbo.vReference
View that combines Reference with ObjectInfo table to get complete literature reference data
dbo.vSample
View that combines Sample with ObjectInfo table to get complete sample data
dbo.vsearchComposition
View for search on composition
vro.vroAspNetRoleClaims
Read-only view for AspNetRoleClaims table
vro.vroAspNetRoles
Read-only view for AspNetRoles table
vro.vroAspNetUserClaims
Read-only view for AspNetUserClaims table
vro.vroAspNetUserLogins
Read-only view for AspNetUserLogins table
vro.vroAspNetUserRoles
Read-only view for AspNetUserRoles table
vro.vroAspNetUsers
Read-only view for AspNetUsers table
vro.vroAspNetUserTokens
Read-only view for AspNetUserTokens table
vro.vroComposition
Read-only view for Composition table
vro.vroElementInfo
Read-only view for ElementInfo table
vro.vroHandover
Read-only view for Handover table
vro.vroObjectInfo
Read-only view for ObjectInfo table
vro.vroObjectLinkObject
Read-only view for ObjectLinkObject table
vro.vroObjectLinkRubric
Read-only view for ObjectLinkRubric table
vro.vroPropertyBigString
Read-only view for PropertyBigString table
vro.vroPropertyFloat
Read-only view for PropertyFloat table
vro.vroPropertyInt
Read-only view for PropertyInt table
vro.vroPropertyString
Read-only view for PropertyString table
vro.vroReference
Read-only view for Reference table
vro.vroRubricInfo
Read-only view for RubricInfo table
vro.vroRubricInfoAdds
Read-only view for RubricInfoAdds table
vro.vroSample
Read-only view for Sample table
vro.vroTenant
Read-only view for Tenant table
vro.vroTypeInfo
Read-only view for TypeInfo table
vro.vrovComposition
Read-only view for vComposition view
vro.vrovHandover
Read-only view for vHandover view
vro.vrovObjectLinkObject
Read-only view for vObjectLinkObject view
vro.vrovReference
Read-only view for vReference view
vro.vrovSample
Read-only view for vSample view
